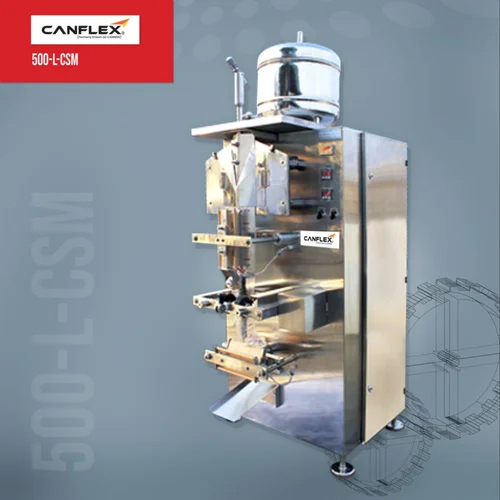

Water Pouch Packing Machine

Water Pouch Packing Machine
Water Pouch Packing Machine
Price And Quantity
  • Unit/Units
  • 1
  • Unit/Units
  • 125000.00 INR
    Product Specifications
    • Filling Machine
    • LD film
    • Heavy Duty Machine
    • Other
    • 3000 pouches per hour Pcs/min
    • No
    • Automatic
    • PLC Control
    • Mechanical
    • 1700(H) x 800(W) x 1200(Depth) Millimeter (mm)
    • Other
    Product Description

     https://youtu.be/nGHqFcBy8TM?rel=0

    Pouch Packing Machines :

    We are one of the Prominent Exporter, Manufacturer and Supplier of Pouch Packing Machines in Hyderabad, Telangana, India.



    Application:

    This machine is widely demanded for packaging of free flow liquids, package drinking water, milk, butter milk, liquids, etc.

    Technical Specifications

    Feeding head

    Float balanced gravity flow filling system

    Production speed

    40-50 pouches per minute.

    Packing range

     up to 500 ml

    Film Width

    up to 325 mm

    Film Thickness

    60 to 80 microns

    Film Material

    Co-Extruded Virgin films

    Sealer heating system

    Continues only

    Inner Core Dia. of Film Roll

    70 mm

    Outer Dia of the film roll

    up to 350 mm

    Pouch Style

    Center sealed pillow type.

    Pouch width

    up to 150 mm.

    Pouch Length

    up to 160 mm

    Power Consumption

    1.2 KW/Hr

    Peak Power

    3 kW

    Power requirement

    Single Phase,220 V, 50 Hz

    Pouch Counter

    Provided

    Date printing device

    Optional

    Machine Dimensions

    1700(H) x 800(W) x 1200 (Depth)

    Net Weight

    400 kgs (approximately)

    Trade Information
    • Hyderabad;Telangana Ex works INDIA
    • Others
    • 20 Per Month
    • wooden pack
    • Africa, Middle East, Asia
    • All India
    • ISO certified
